Use RS to Connect with SLAMKit

• Install Windows or Android RoboStudio on user's device.

• RoboStudio can work in both online and offline mode. The difference between these two modes can be found in the user manual of RoboStudio.

• When the WiFi module of IPC is set to AP mode, users can connect to its hotspot. Alternatively, when the WiFi module of IPC works in station mode, it can be connected to the same local network as the user's terminal device. Without WiFi, user can take a hardware connection with IPC via ethernet.

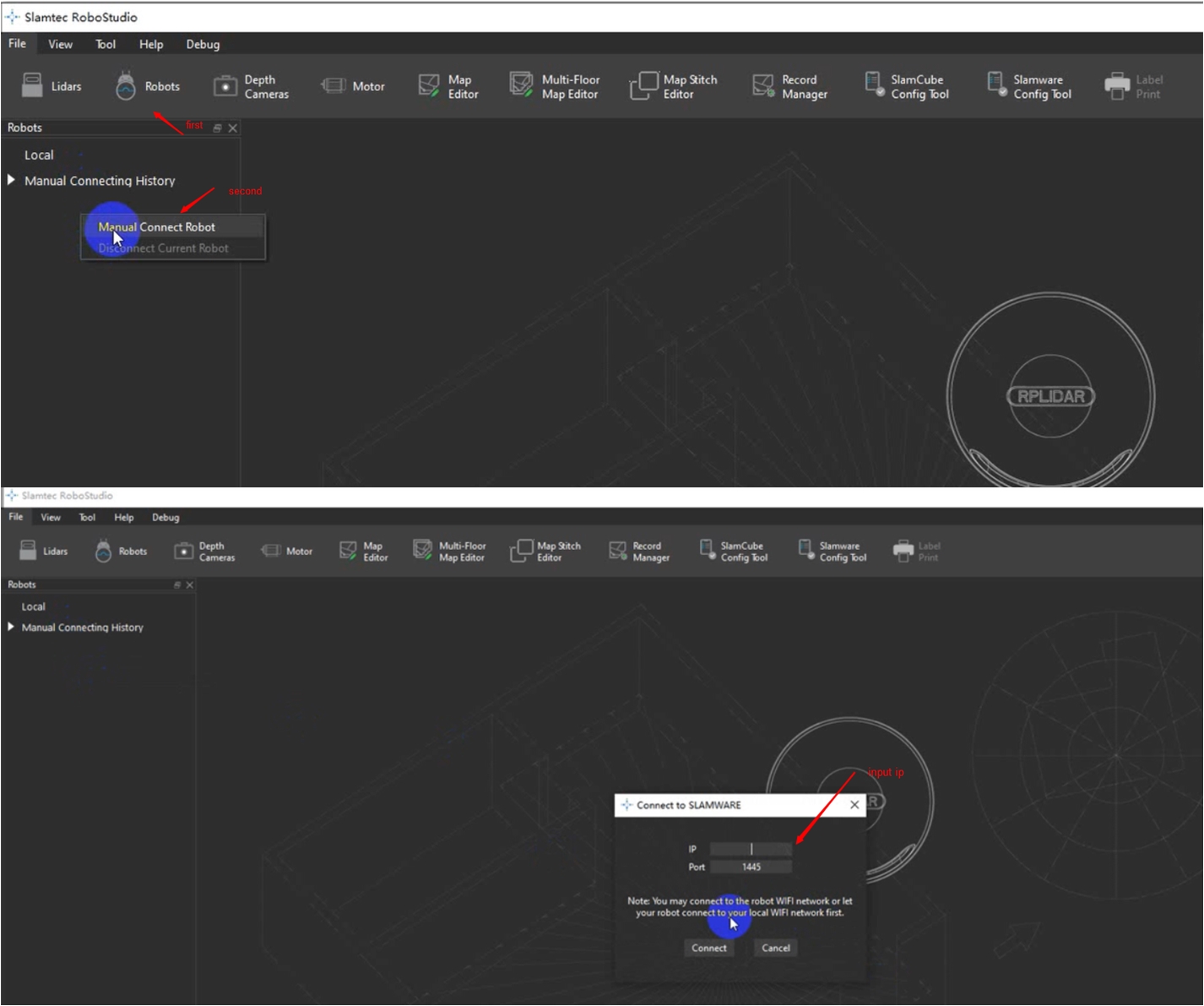

• As shown in figure 1, users can follow the operation steps to connect to SLAMKit. (Attention: in the second step, "Manual Connect Robot" is appeared by right-clicking.) And the IP address is 192.168.11.1 in WiFi-AP and ethernet connection. Instead, the local network IP address of IPC can be used in WiFi-station mode.

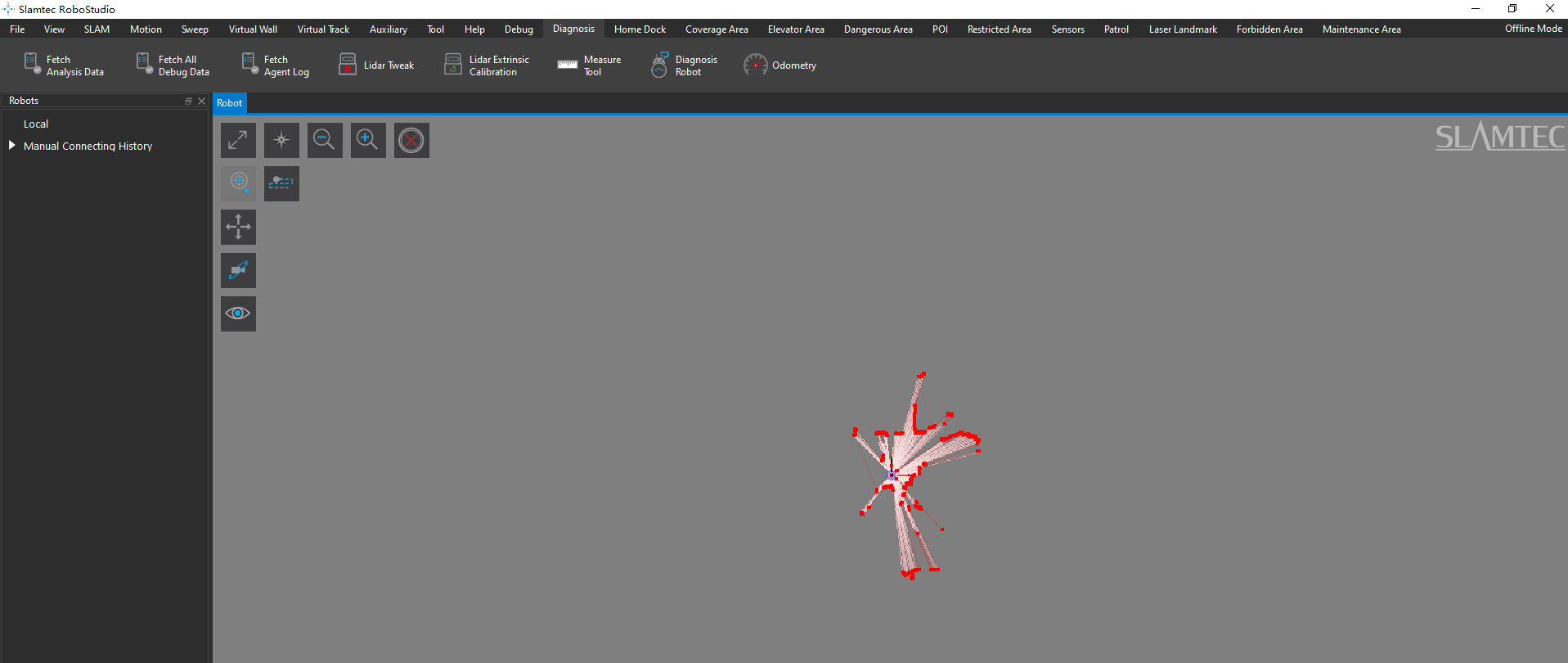

• As soon as the SLAMKit is successfully connected, the main work area of Robostudio will display the pose, layered map, point cloud, and other status.



• For more operations, please refer to the user manual of Robostudio.
